ตู้คอนโทรลไฟอลาม รุ่น FA601 ขนาด 1 โซน ยี่ห้อ CEMEN มาตรฐาน CE

PSFIRE

DATASHEET

FIRE ALARM SYSTEM

Features

• User central process to control signals of alarm, disconnection, loop short-circuit, hydrant, manual call point and external power source, Accuracy has being upgrade than ever.

• It has not only common disconnection signal but also added

short-circuit function which improve the shortage of regular

control panel.

This unit is capable to distinguish between the real

fire signal and false alarm signal caused by short-circuit which

will eliminate unnecessary man power and resources to achieve

the real function of control panel.

• Uses 5V as operating voltage of related signal, its stability has

much better than traditional panel.

• Uses tiny electronic-type transformer with overload protection

which not only supply stable voltage but also ensure that

panel wont damaged by abnormal voltage, and minimize the

OcCupied space as well.

• Standby power uses smaller size of rechargeable battery with System Control protective device that increase the safety of use.

• Electronic-type diaphragm switch has passed reliable test for

500000 Cycles Min. its CPU control method improved and

decreased the damaged of panel caused by directly voltage control.

• Uses individual PCB module design that separate CPU from Power S.T. power board for easy maintenance.

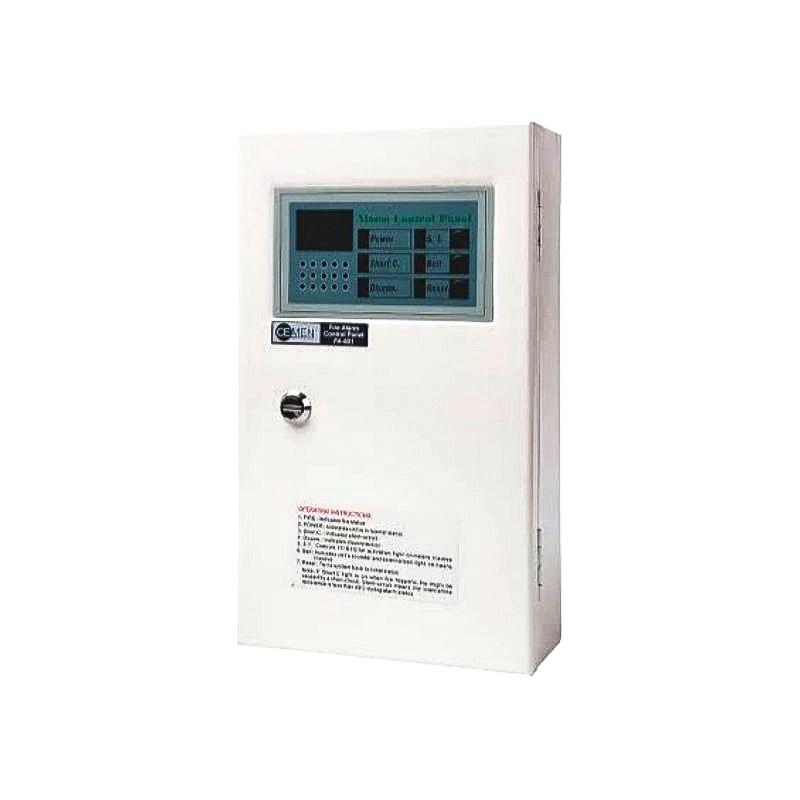

FA601 ( 1 Zone Alarm )

*Made in Taiwan

Material : 1.2mm steel plate

Color : Ivory white Others also available

Dimensions : 160mm (H) x 220mm (W) x 70mm (D)

Accessory Functions : Dual signal transfer contacts, aux. contacts

Model

Power

Voltage Scope

Standby Power

Charging Voltage

Loop Voltage, Current

Exterior Resistance

# of heat detector connected

# of smoke detector connected

# of indicating lamp, bell connected

Digital Switch

End of Line Resistor

FA-601

110/220VAC 50/60Hz

Nominal voltage #20%

24VDC 800mA

26VDC 100-400mA

24VDC short circuit under 5V 30mA Ext

Round-trip under 50 Ohm

No limit

30/loop

#of loop x 1.2

500000 Cycles Min. reliability

10k

Remark

Others also available

With auto adjustment function

Except electronic-type

Horing Lih's product

One per loop

CEMEN

ISO9001  ■  CE

FIRE ALARM EQUIPMENT
